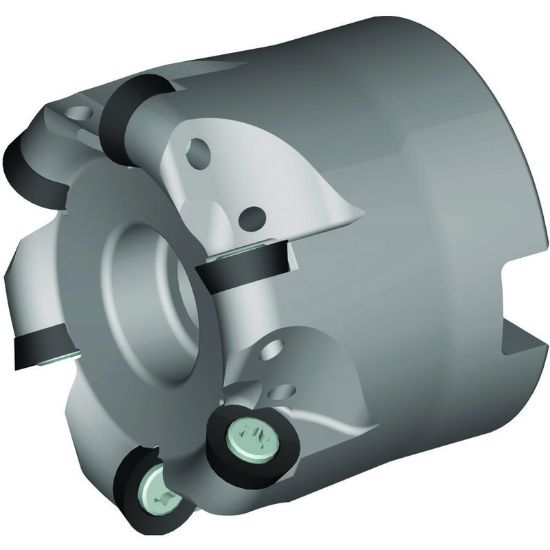

Picture of WIDIA/KENNAMETAL M170D052Z06RD10 Button Cutter Milling Cutter 2.047 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M170D052Z06RD10 Button Cutter Milling Cutter 2.047 Cutter Diameter Face Mill 0.866

ANSI: M170D052Z06RD10

ISO: M170D052Z06RD10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3940725
Delivery date: 3-5 days
$492.68

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Pocket Milling, Round Milling, Ramp Milling, Face Milling
Shipping State Pennsylvania
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 10
Cut Dia Min 1.6540 42.01MM
Overall Len 1.9690 50.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 6
Depth Of Cut Max 0.1970
Tool Material Steel
Cutter Dia 2.0470 51.99MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
