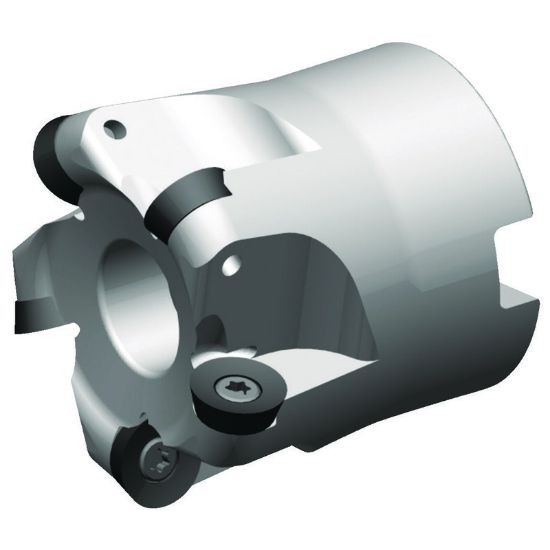

Picture of WIDIA/KENNAMETAL M170D052Z05RD12 Button Cutter Milling Cutter 2.047 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M170D052Z05RD12 Button Cutter Milling Cutter 2.047 Cutter Diameter Face Mill 0.866

ANSI: M170D052Z05RD12

ISO: M170D052Z05RD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3930972
Delivery date: 3-5 days
$383.15

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Package Size 1
Made In USA No
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Depth Of Cut Max 0.2360
Cut Dia Min 1.5750 40.01MM
Overall Len 1.9690 50.01MM
Flutes/Inserts 5
Insert Size Ic 12
Machine Side Connection Size 0.8661 22.00MM
Cutter Dia 2.0470 51.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RD
