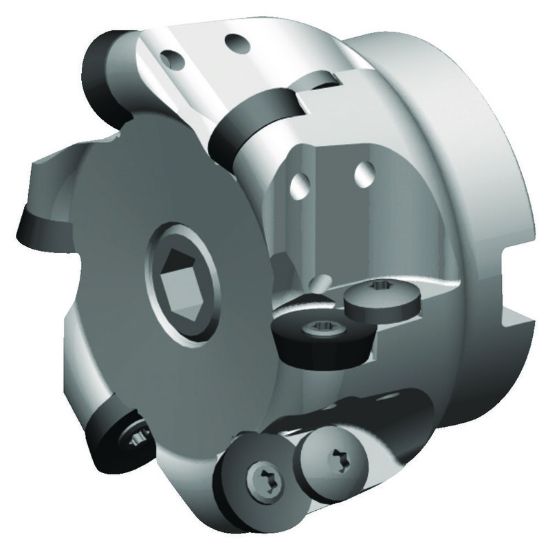

Picture of WIDIA/KENNAMETAL M170D052Z04RD16 Button Cutter Milling Cutter 2.047 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M170D052Z04RD16 Button Cutter Milling Cutter 2.047 Cutter Diameter Face Mill 0.866

ANSI: M170D052Z04RD16

ISO: M170D052Z04RD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3934623
Delivery date: 3-5 days
$422.32

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Pocket Milling, Face Milling, Round Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Made In USA No
Insert Application Roughing, Semi Finishing
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 2.0470 51.99MM
Tool Material Steel
Overall Len 1.9690 50.01MM
Cut Dia Min 1.4170 35.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Depth Of Cut Max 0.3150
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style RD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
