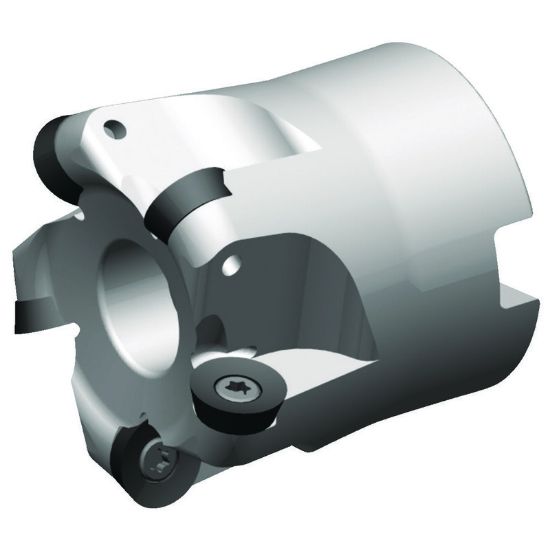

Picture of WIDIA/KENNAMETAL M170D050Z05RD12 Button Cutter Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M170D050Z05RD12 Button Cutter Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: M170D050Z05RD12

ISO: M170D050Z05RD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3930970
Delivery date: 3-5 days
$383.15

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Round Milling, Ramp Milling
Shipping State Pennsylvania
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Overall Len 1.5750 40.01MM
Cutter Dia 1.9690 50.01MM
Cut Dia Min 1.4960 38.00MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Depth Of Cut Max 0.2360
Flutes/Inserts 5
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
