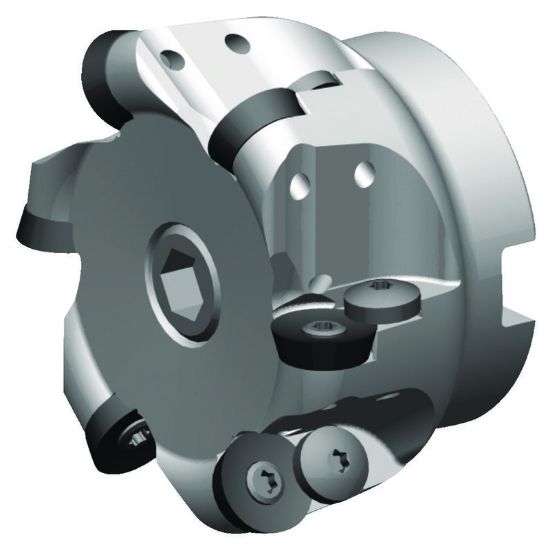

Picture of WIDIA/KENNAMETAL M170D050Z04RD16 Button Cutter Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M170D050Z04RD16 Button Cutter Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: M170D050Z04RD16

ISO: M170D050Z04RD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3926602
Delivery date: 3-5 days
$422.32

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling, Pocket Milling, Ramp Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.9690 50.01MM
Insert Size Ic 16
Depth Of Cut Max 0.3150
Cut Dia Min 1.3390 34.01MM
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.5750 40.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RD
