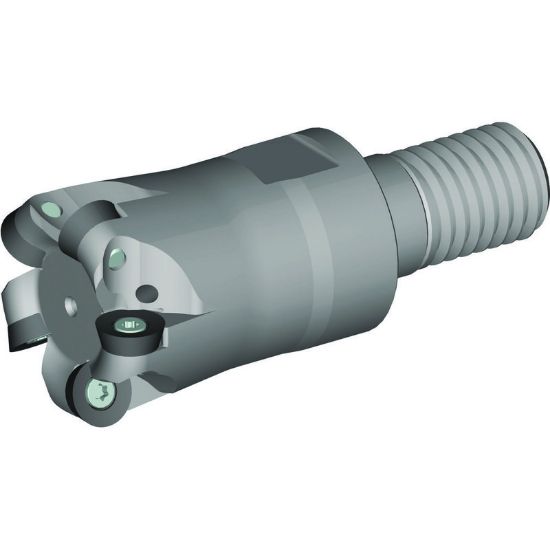

Picture of WIDIA/KENNAMETAL M170D042Z06M16RD10 Button Cutter Milling Cutter 1.654 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M170D042Z06M16RD10 Button Cutter Milling Cutter 1.654 Cutter Diameter Screw On M16

ANSI: M170D042Z06M16RD10

ISO: M170D042Z06M16RD10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3934652
Delivery date: 3-5 days
$402.55

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application Semi Finishing, Roughing
Application Round Milling, Ramp Milling, Pocket Milling, Face Milling
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cut Dia Min 1.2600 32.00MM
Flutes/Inserts 6
Overall Len 2.7360 69.49MM
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Cutter Dia 1.6540 42.11MM
Tool Material Steel
Insert Size Ic 10
Depth Of Cut Max 0.1960
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
