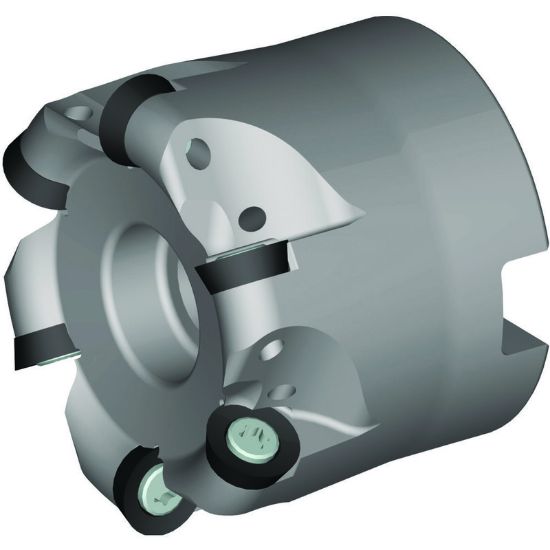

Picture of WIDIA/KENNAMETAL M170D042Z05RD10 Button Cutter Milling Cutter 1.654 Cutter Diameter Face Mill 0.629

WIDIA/KENNAMETAL M170D042Z05RD10 Button Cutter Milling Cutter 1.654 Cutter Diameter Face Mill 0.629

ANSI: M170D042Z05RD10

ISO: M170D042Z05RD10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3940723
Delivery date: 3-5 days
$383.15

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Round Milling
Package Size 1
Made In USA No
Shipping State Pennsylvania
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Cutter Dia 1.6540 42.11MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.5750 40.01MM
Insert Size Ic 10
Depth Of Cut Max 0.1970
Flutes/Inserts 5
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Size 0.6299 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RD
