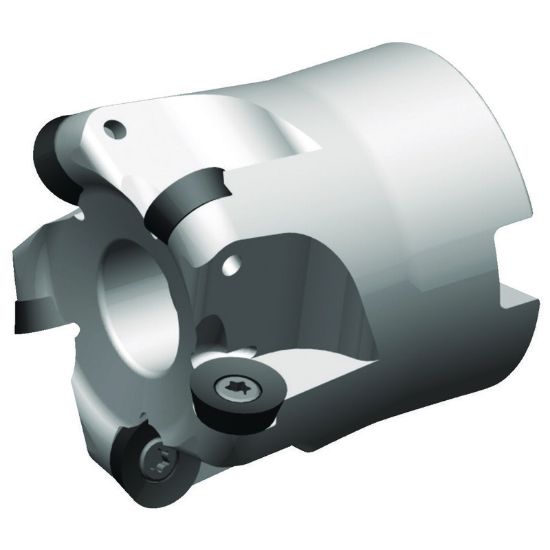

Picture of WIDIA/KENNAMETAL M170D040Z04RD12 Button Cutter Milling Cutter 1.575 Cutter Diameter Face Mill 0.629

WIDIA/KENNAMETAL M170D040Z04RD12 Button Cutter Milling Cutter 1.575 Cutter Diameter Face Mill 0.629

ANSI: M170D040Z04RD12

ISO: M170D040Z04RD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3930968
Delivery date: 3-5 days
$356.36

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Pocket Milling, Face Milling, Round Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2360
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Machine Side Connection Size 0.6299 16.00MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Insert Size Ic 12
Cut Dia Min 1.1020 27.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
Coolant Thru Yes
