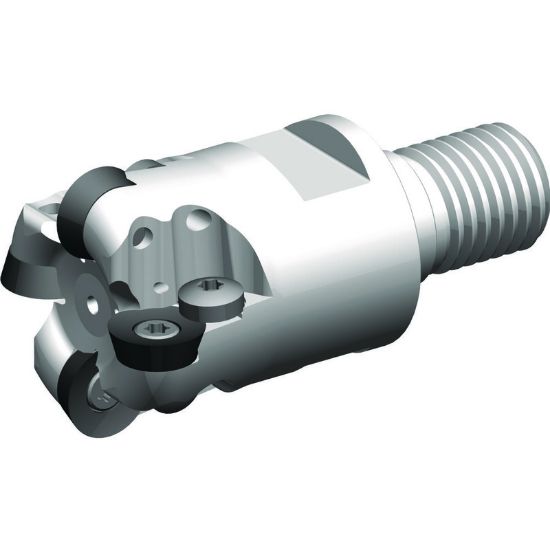

Picture of WIDIA/KENNAMETAL M170D035Z03M16RD12 Button Cutter Milling Cutter 1.378 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M170D035Z03M16RD12 Button Cutter Milling Cutter 1.378 Cutter Diameter Screw On M16

ANSI: M170D035Z03M16RD12

ISO: M170D035Z03M16RD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3930954
Delivery date: 3-5 days
$316.75

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Application Round Milling, Pocket Milling, Face Milling, Ramp Milling
Made In USA No
Shipping State Pennsylvania
Package Size 1
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.2360
Overall Len 2.6570 67.49MM
Flutes/Inserts 3
Insert Size Ic 12
Cut Dia Min 0.9060 23.01MM
Cutter Dia 1.3780 35.00MM
Tool Material Steel
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Insert Style RD
