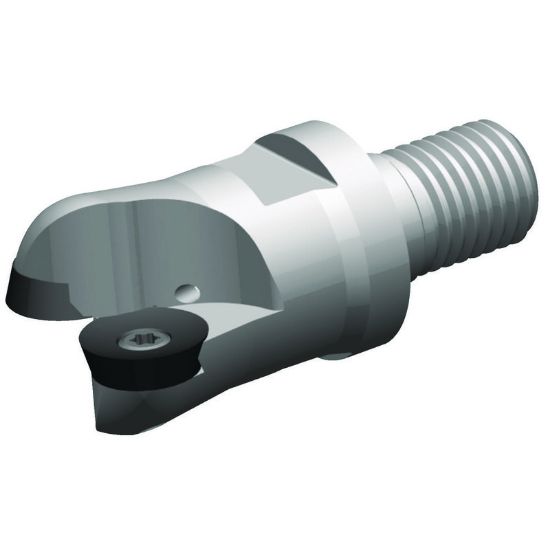

Picture of WIDIA/KENNAMETAL M170D032Z02M16RD16 Button Cutter Milling Cutter 1.260 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M170D032Z02M16RD16 Button Cutter Milling Cutter 1.260 Cutter Diameter Screw On M16

ANSI: M170D032Z02M16RD16

ISO: M170D032Z02M16RD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3926601
Delivery date: 3-5 days
$303.56

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Ramp Milling, Round Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.3150
Cut Dia Min 0.6300 16.00MM
Tool Material Steel
Cutter Dia 1.2600 32.00MM
Flutes/Inserts 2
Overall Len 2.6570 67.49MM
Insert Size Ic 16
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Insert Style RD
