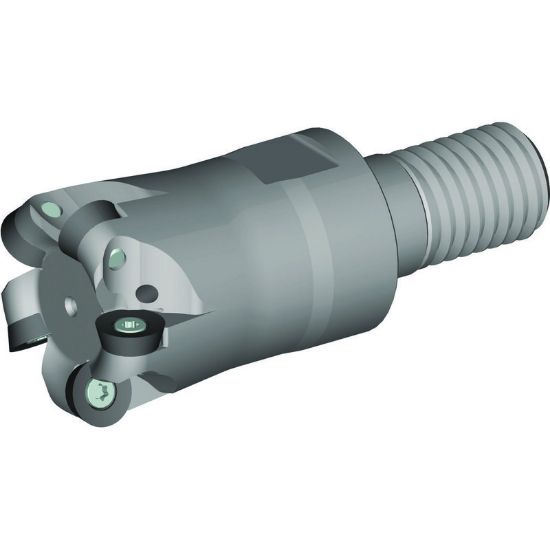

Picture of WIDIA/KENNAMETAL M170D030Z04M16RD10 Button Cutter Milling Cutter 1.181 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M170D030Z04M16RD10 Button Cutter Milling Cutter 1.181 Cutter Diameter Screw On M16

ANSI: M170D030Z04M16RD10

ISO: M170D030Z04M16RD10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3934650
Delivery date: 3-5 days
$329.96

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Round Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Insert Size Ic 10
Cut Dia Min 0.7870 19.99MM
Overall Len 2.6570 67.49MM
Cutter Dia 1.1810 30.00MM
Depth Of Cut Max 0.1970
Tool Material Steel
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
