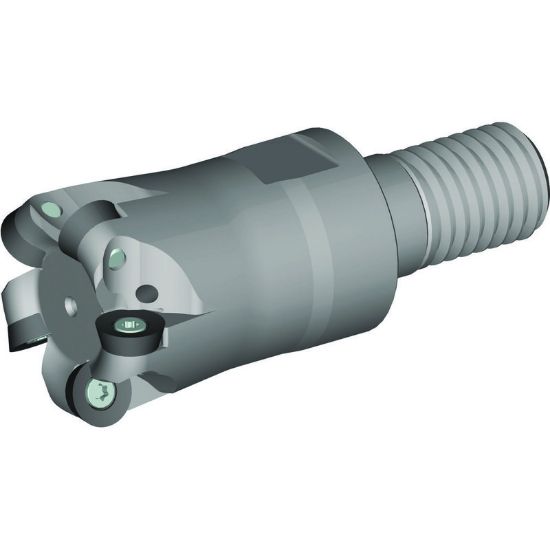

Picture of WIDIA/KENNAMETAL M170D025Z05M12RD07 Button Cutter Milling Cutter 0.984 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL M170D025Z05M12RD07 Button Cutter Milling Cutter 0.984 Cutter Diameter Screw On M12

ANSI: M170D025Z05M12RD07

ISO: M170D025Z05M12RD07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3926610
Delivery date: 3-5 days
$329.96

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Application Ramp Milling, Pocket Milling, Face Milling, Round Milling
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 0.9840 24.99MM
Depth Of Cut Max 0.1380
Flutes/Inserts 5
Insert Size Ic 702
Cut Dia Min 0.7110 18.06MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Tool Material Steel
Overall Len 2.2440 57.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
