  • WIDIA/KENNAMETAL M170D025Z02A25RD10L180 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

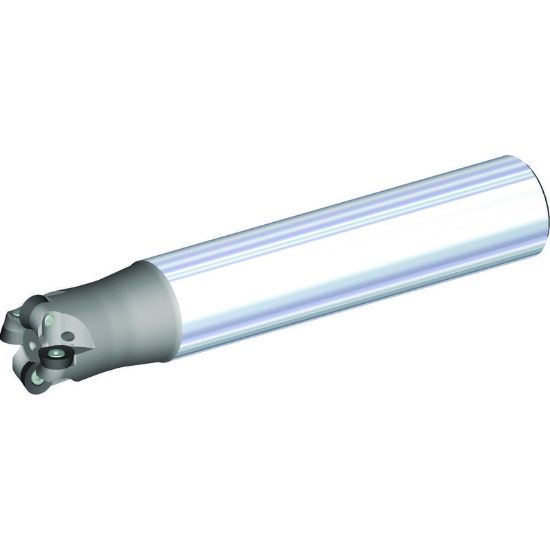

Picture of WIDIA/KENNAMETAL M170D025Z02A25RD10L180 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL M170D025Z02A25RD10L180 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

ANSI: M170D025Z02A25RD10L180

ISO: M170D025Z02A25RD10L180

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3940709
Delivery date: 3-5 days
$303.56

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Face Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Overall Len 7.0870 180.01MM
Flutes/Inserts 2
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cut Dia Min 0.5910 15.01MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 10
Depth Of Cut Max 0.1970
Tool Material Steel
Cutting & Machining Properties
Insert Style RD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
