  • WIDIA/KENNAMETAL M170D022Z02A20RD10L160 Button Cutter Milling Cutter 0.866 Cutter Diameter Cylindrical 0.787

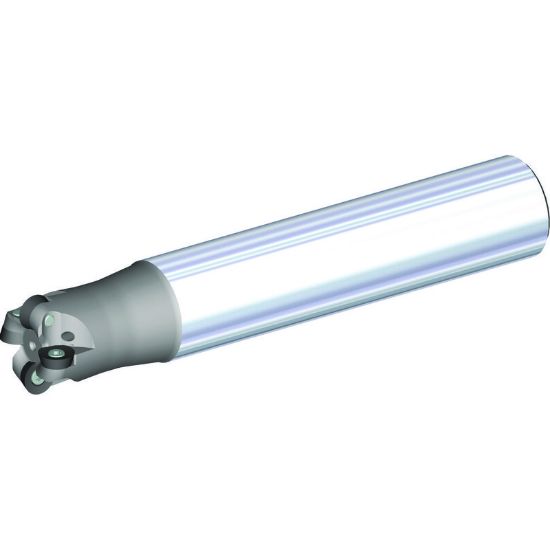

Picture of WIDIA/KENNAMETAL M170D022Z02A20RD10L160 Button Cutter Milling Cutter 0.866 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL M170D022Z02A20RD10L160 Button Cutter Milling Cutter 0.866 Cutter Diameter Cylindrical 0.787

ANSI: M170D022Z02A20RD10L160

ISO: M170D022Z02A20RD10L160

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3940707
Delivery date: 3-5 days
$290.36

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Ramp Milling, Pocket Milling
Made In USA No
Package Size 1
Insert Type Positive
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 10
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Cut Dia Min 0.4720 11.99MM
Machine Side Connection Size 0.7874 20.00MM
Cutter Dia 0.8660 22.00MM
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 6.2990 159.99MM
Depth Of Cut Max 0.1970
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
