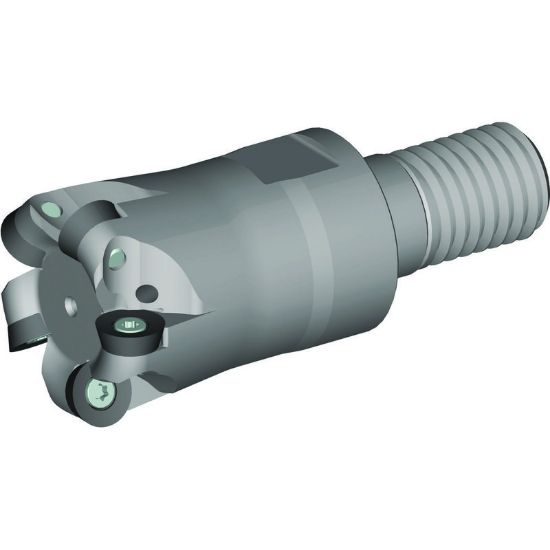

Picture of WIDIA/KENNAMETAL M170D020Z04M10RD07 Button Cutter Milling Cutter 0.787 Cutter Diameter Screw On M10

WIDIA/KENNAMETAL M170D020Z04M10RD07 Button Cutter Milling Cutter 0.787 Cutter Diameter Screw On M10

ANSI: M170D020Z04M10RD07

ISO: M170D020Z04M10RD07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3926609
Delivery date: 3-5 days
$296.95

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 4
Cutter Dia 0.7870 19.99MM
Cut Dia Min 0.5090 12.93MM
Depth Of Cut Max 0.1380
Tool Material Steel
Insert Size Ic 702
Machine Side Connection Type Screw On
Overall Len 1.9690 50.01MM
Machine Side Connection Size M10
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
