  • WIDIA/KENNAMETAL M170D020Z04A20RD07L115 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

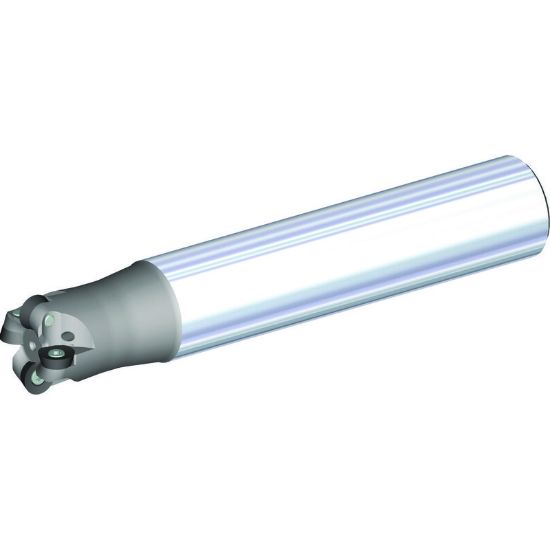

Picture of WIDIA/KENNAMETAL M170D020Z04A20RD07L115 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL M170D020Z04A20RD07L115 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

ANSI: M170D020Z04A20RD07L115

ISO: M170D020Z04A20RD07L115

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3929408
Delivery date: 3-5 days
$270.56

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Round Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Overall Len 4.5280 115.01MM
Depth Of Cut Max 0.1380
Tool Material Steel
Insert Size Ic 702
Cut Dia Min 0.5130 13.03MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
