  • WIDIA/KENNAMETAL M170D020Z03A20RD07L140 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

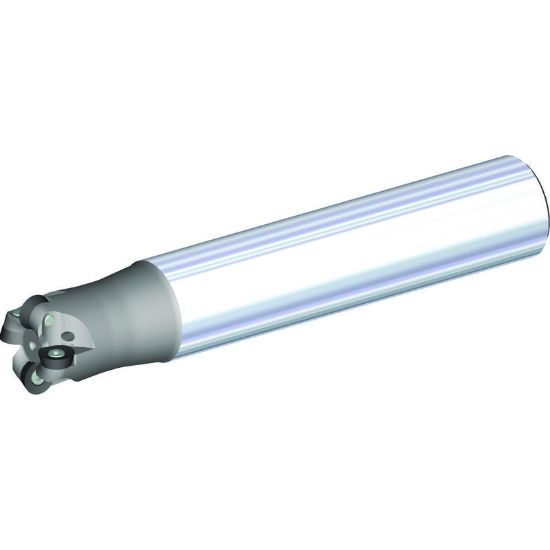

Picture of WIDIA/KENNAMETAL M170D020Z03A20RD07L140 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL M170D020Z03A20RD07L140 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

ANSI: M170D020Z03A20RD07L140

ISO: M170D020Z03A20RD07L140

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3929409
Delivery date: 3-5 days
$270.56

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Ramp Milling, Pocket Milling, Round Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Cut Dia Min 0.5130 13.03MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 3
Machine Side Connection Size 0.7874 20.00MM
Cutter Dia 0.7870 19.99MM
Overall Len 5.5120 140.00MM
Depth Of Cut Max 0.1380
Tool Material Steel
Insert Size Ic 702
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
Coolant Thru Yes
