  • WIDIA/KENNAMETAL M170D020Z02B20RD10 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

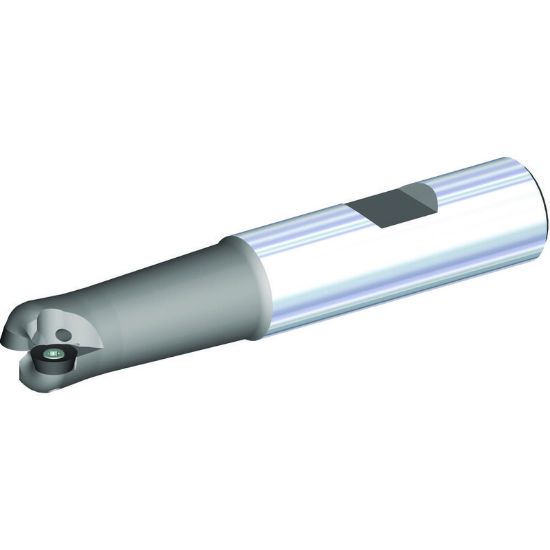

Picture of WIDIA/KENNAMETAL M170D020Z02B20RD10 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL M170D020Z02B20RD10 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

ANSI: M170D020Z02B20RD10

ISO: M170D020Z02B20RD10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3940703
Delivery date: 3-5 days
$263.96

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Round Milling, Ramp Milling, Face Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7874 20.00MM
Flutes/Inserts 2
Cut Dia Min 0.3940 10.01MM
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Type Cylindrical
Cutter Dia 0.7870 19.99MM
Insert Size Ic 10
Depth Of Cut Max 0.1970
Overall Len 4.3310 110.01MM
Cutting & Machining Properties
Hand R/L Right
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
