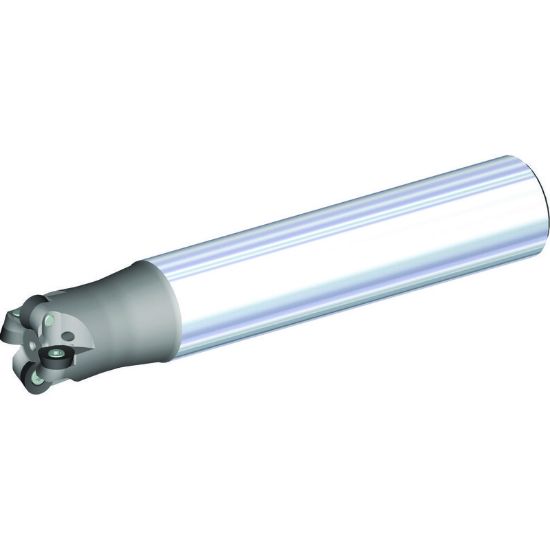

Picture of WIDIA/KENNAMETAL M170D020Z02A20RD10L140 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL M170D020Z02A20RD10L140 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

ANSI: M170D020Z02A20RD10L140

ISO: M170D020Z02A20RD10L140

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3940704
Delivery date: 3-5 days
$277.16

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Round Milling
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.3940 10.01MM
Overall Len 5.5120 140.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7874 20.00MM
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 2
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 10
Depth Of Cut Max 0.1970
Tool Material Steel
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
