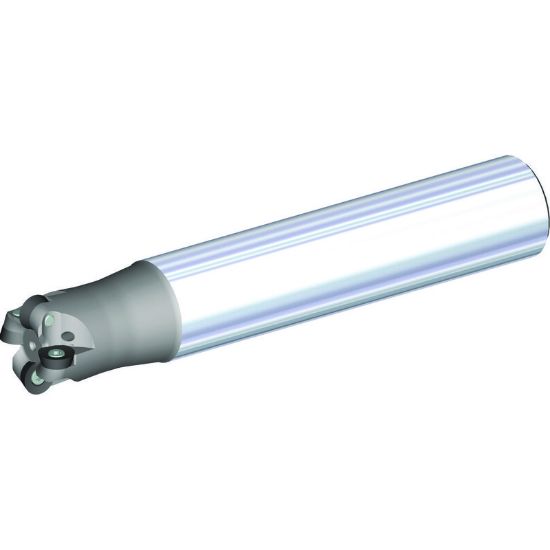

WIDIA/KENNAMETAL M170D012Z02A12RD07TL100 Button Cutter Milling Cutter 0.472 Cutter Diameter Cylindrical 0.472

ANSI: M170D012Z02A12RD07TL100

ISO: M170D012Z02A12RD07TL100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3935339
Delivery date: 3-5 days
$210.64

Features And Benefits

Longer cutter tool life. Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Insert Type Positive
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.1380
Cut Dia Min 0.1970 5.00MM
Tool Material Steel
Insert Size Ic 702
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.9370 100.00MM
Cutter Dia 0.4720 11.99MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Inter/Extern External
Insert Style RD
