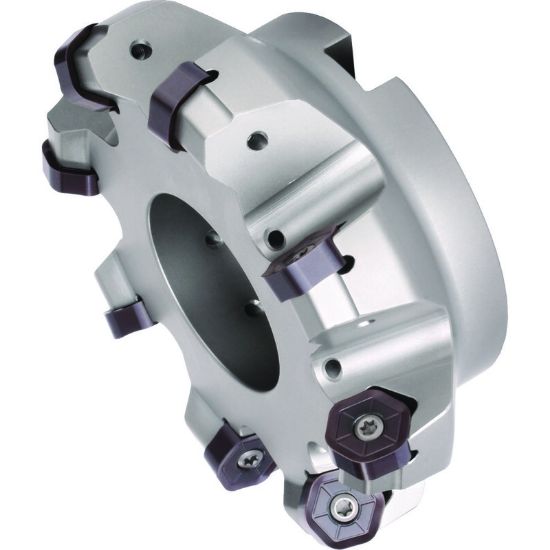

Picture of WIDIA/KENNAMETAL M1200HF200Z04S075HN09 45.0° Milling Cutter 2.704 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M1200HF200Z04S075HN09 45.0° Milling Cutter 2.704 Cutter Diameter Face Mill 0.750

ANSI: M1200HF200Z04S075HN09

ISO: M1200HF200Z04S075HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3954510
Delivery date: 3-5 days
$487.33

Features And Benefits

Twelve cutting edges. High feed rates for rough face milling. Use standard M1200 inserts. Do not load wiper inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Negative
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 1.5750 40.01MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.0870
Insert Size Ic 905
Cut Dia Min 2.0000 50.80MM
Cutter Dia 2.7040 68.68MM
Cutting & Machining Properties
Insert Style HN,XN
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Hand R/L Right
