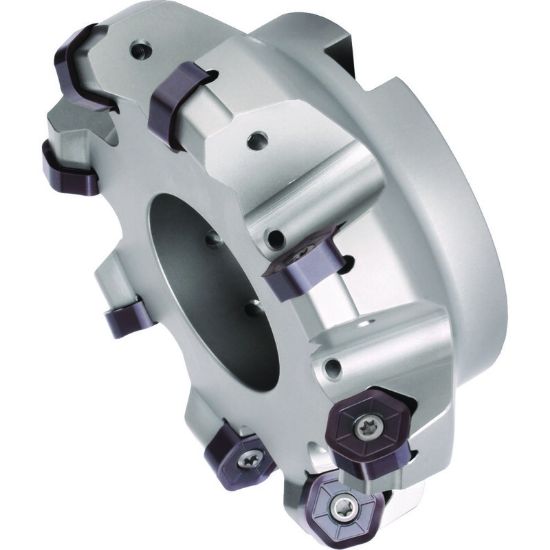

Picture of WIDIA/KENNAMETAL M1200HF100Z08HN09 45.0° Milling Cutter 4.640 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL M1200HF100Z08HN09 45.0° Milling Cutter 4.640 Cutter Diameter Face Mill 1.259

ANSI: M1200HF100Z08HN09

ISO: M1200HF100Z08HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3750435
Delivery date: 3-5 days
$952.08

Features And Benefits

Twelve cutting edges. High feed rates for rough face milling. Use standard M1200 inserts. Do not load wiper inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Shipping State Pennsylvania
Insert/Tool Tool
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.0870
Flutes/Inserts 8
Cutter Dia 4.6400 117.86MM
Cut Dia Min 3.9370 100.00MM
Overall Len 1.9681 49.99MM
Insert Size Ic 905
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
