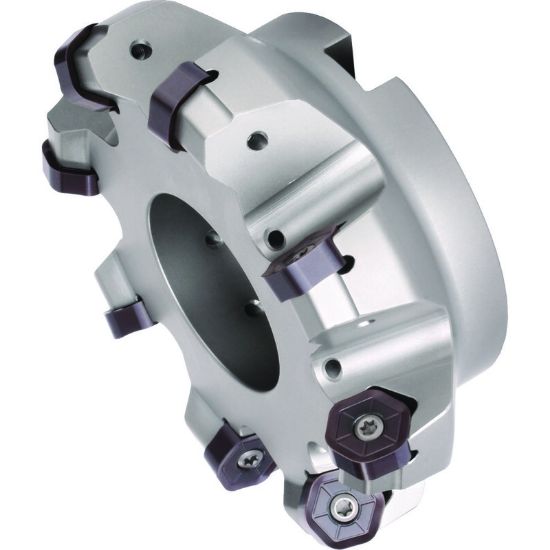

Picture of WIDIA/KENNAMETAL M1200HF063Z05HN09 45.0° Milling Cutter 3.184 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M1200HF063Z05HN09 45.0° Milling Cutter 3.184 Cutter Diameter Face Mill 0.866

ANSI: M1200HF063Z05HN09

ISO: M1200HF063Z05HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3750372
Delivery date: 3-5 days
$625.09

Features And Benefits

Twelve cutting edges. High feed rates for rough face milling. Use standard M1200 inserts. Do not load wiper inserts.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Finishing, Roughing
Application Face Milling
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 1.5748 40.00MM
Flutes/Inserts 5
Depth Of Cut Max 0.0870
Cutter Dia 3.1840 80.87MM
Insert Size Ic 905
Cut Dia Min 2.4800 62.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Insert Style HN,XN
Coolant Thru Yes
Hand R/L Right
