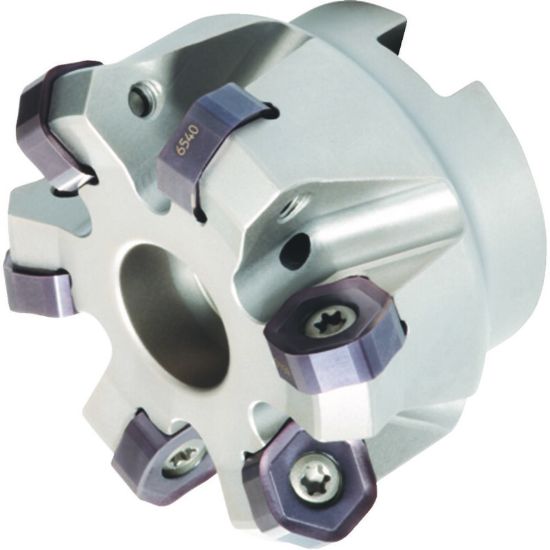

Picture of WIDIA/KENNAMETAL M1200HD300Z05S100HN07 30.0° Milling Cutter 3.266 Cutter Diameter Face Mill 1.000

WIDIA/KENNAMETAL M1200HD300Z05S100HN07 30.0° Milling Cutter 3.266 Cutter Diameter Face Mill 1.000

ANSI: M1200HD300Z05S100HN07

ISO: M1200HD300Z05S100HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4136421
Delivery date: 3-5 days
$648.92

Features And Benefits

Twelve cutting edges. Higher Ap1 max with standard insert.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Overall Len 1.7500 44.45MM
Cutter Dia 3.2660 82.96MM
Tool Material Steel
Flutes/Inserts 5
Insert Size Ic 704
Depth Of Cut Max 0.1860
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style HN,XN
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Hand R/L Right
