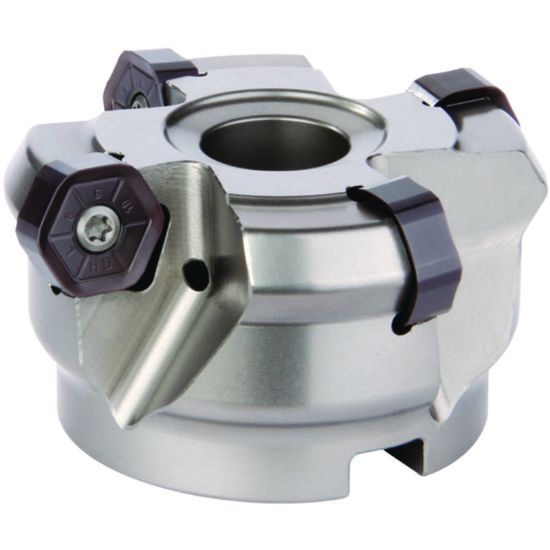

Picture of WIDIA/KENNAMETAL M1200HD250Z06S075HN09 60.0° Milling Cutter 2.836 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M1200HD250Z06S075HN09 60.0° Milling Cutter 2.836 Cutter Diameter Face Mill 0.750

ANSI: M1200HD250Z06S075HN09

ISO: M1200HD250Z06S075HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4147879
Delivery date: 3-5 days
$706.61

Features And Benefits

Twelve cutting edges. Higher Ap1 max with standard insert. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Insert Type Negative
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 905
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 6
Depth Of Cut Max 0.2360
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.8360 72.03MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.5750 40.01MM
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
