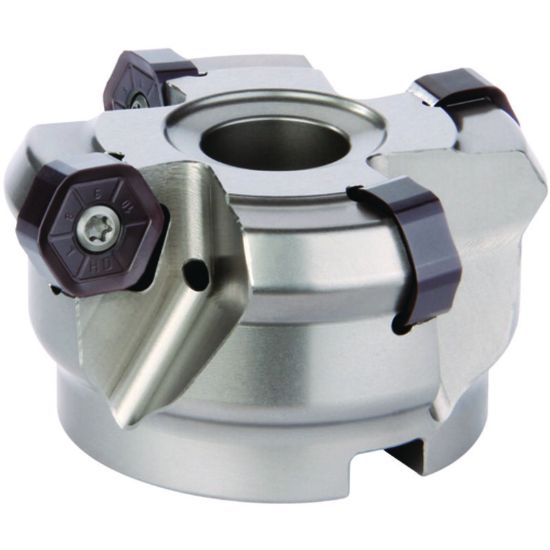

Picture of WIDIA/KENNAMETAL M1200HD125Z10HN09 60.0° Milling Cutter 5.256 Cutter Diameter Face Mill 1.574

WIDIA/KENNAMETAL M1200HD125Z10HN09 60.0° Milling Cutter 5.256 Cutter Diameter Face Mill 1.574

ANSI: M1200HD125Z10HN09

ISO: M1200HD125Z10HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4152122
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Twelve cutting edges. Higher Ap1 max with standard insert.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Dimensional Specifications
Insert Size Ic 905
Overall Len 2.4800 62.99MM
Flutes/Inserts 10
Depth Of Cut Max 0.2360
Cutter Dia 5.2560 133.50MM
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5748 40.00MM
Cutting & Machining Properties
Insert Style HN,XN
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Hand R/L Right
