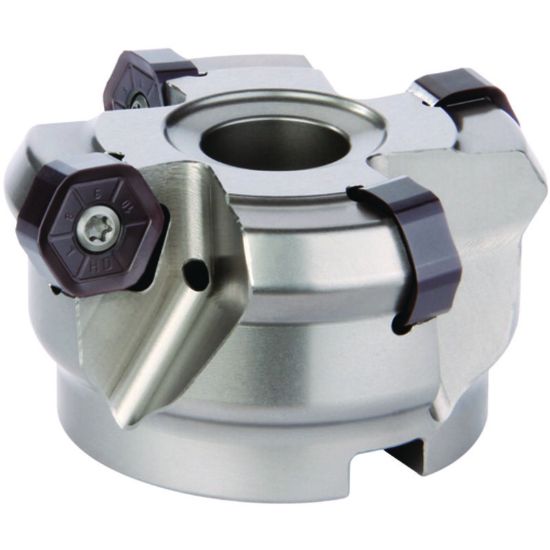

Picture of WIDIA/KENNAMETAL M1200HD080Z08HN09 60.0° Milling Cutter 3.485 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M1200HD080Z08HN09 60.0° Milling Cutter 3.485 Cutter Diameter Face Mill 1.063

ANSI: M1200HD080Z08HN09

ISO: M1200HD080Z08HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4152118
Delivery date: 3-5 days
$878.47

Features And Benefits

Twelve cutting edges. Higher Ap1 max with standard insert.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Face Milling
Package Size 1
Shipping State Pennsylvania
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 905
Cutter Dia 3.4850 88.52MM
Flutes/Inserts 8
Depth Of Cut Max 0.2360
Overall Len 1.9690 50.01MM
Tool Material Steel
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Insert Style HN,XN
