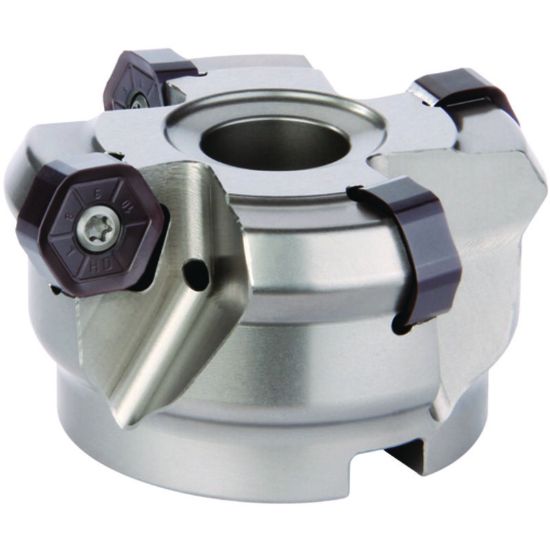

Picture of WIDIA/KENNAMETAL M1200HD080Z05HN09 60.0° Milling Cutter 3.485 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M1200HD080Z05HN09 60.0° Milling Cutter 3.485 Cutter Diameter Face Mill 1.063

ANSI: M1200HD080Z05HN09

ISO: M1200HD080Z05HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4152117
Delivery date: 3-5 days
$687.36

Features And Benefits

Twelve cutting edges. Higher Ap1 max with standard insert.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 3.4850 88.52MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Insert Size Ic 905
Cut Dia Min 3.1500 80.01MM
Depth Of Cut Max 0.2360
Tool Material Steel
Flutes/Inserts 5
Overall Len 1.9690 50.01MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Insert Style HN,XN
