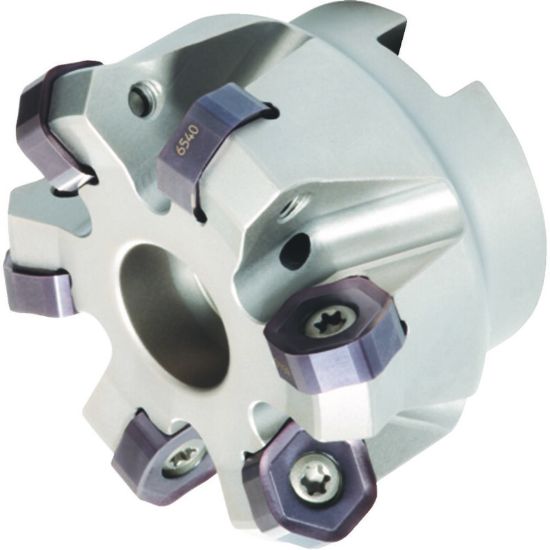

Picture of WIDIA/KENNAMETAL M1200D400Z09S150HN07 45.0° Milling Cutter 4.342 Cutter Diameter Face Mill 1.500

WIDIA/KENNAMETAL M1200D400Z09S150HN07 45.0° Milling Cutter 4.342 Cutter Diameter Face Mill 1.500

ANSI: M1200D400Z09S150HN07

ISO: M1200D400Z09S150HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3954505
Delivery date: 3-5 days
$907.96

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 704
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.1380
Tool Material Steel
Flutes/Inserts 9
Overall Len 1.7500 44.45MM
Cutter Dia 4.3420 110.29MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Insert Style HN,XN
Hand R/L Right
