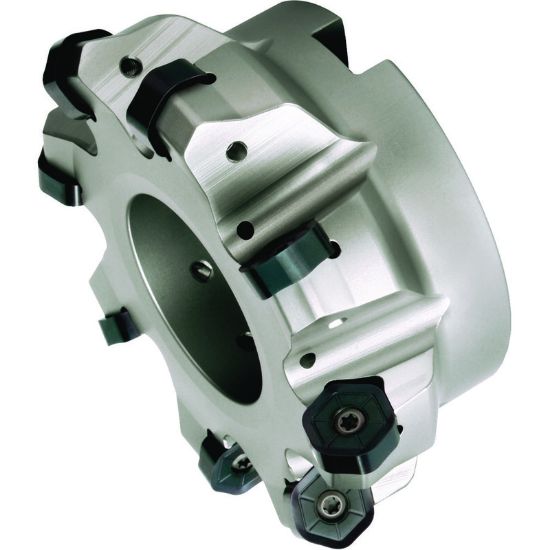

Picture of WIDIA/KENNAMETAL M1200D400Z06S150HN09 45.0° Milling Cutter 4.432 Cutter Diameter Face Mill 1.500

WIDIA/KENNAMETAL M1200D400Z06S150HN09 45.0° Milling Cutter 4.432 Cutter Diameter Face Mill 1.500

ANSI: M1200D400Z06S150HN09

ISO: M1200D400Z06S150HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958019
Delivery date: 3-5 days
$829.21

Features And Benefits

Twelve cutting edges. First choice for general face milling. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.1770
Cutter Dia 4.4324 112.58MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 4.0000 101.60MM
Tool Material Steel
Insert Size Ic 905
Overall Len 1.7500 44.45MM
Flutes/Inserts 6
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Hexagon
Insert Style HN,XN
Hand R/L Right
