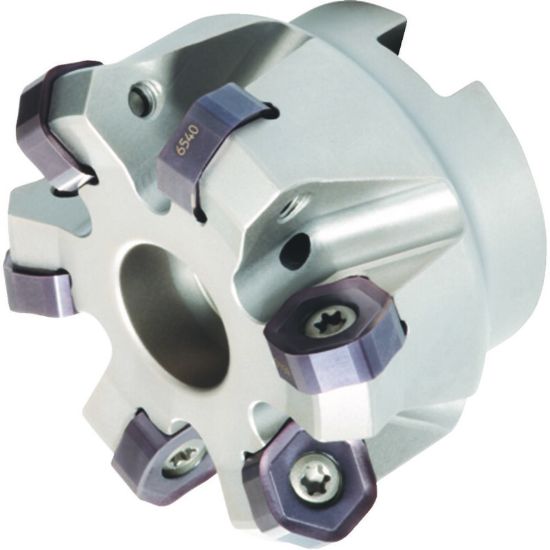

Picture of WIDIA/KENNAMETAL M1200D400Z06S150HN07 45.0° Milling Cutter 4.342 Cutter Diameter Face Mill 1.500

WIDIA/KENNAMETAL M1200D400Z06S150HN07 45.0° Milling Cutter 4.342 Cutter Diameter Face Mill 1.500

ANSI: M1200D400Z06S150HN07

ISO: M1200D400Z06S150HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3954504
Delivery date: 3-5 days
$759.21

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Insert Type Negative
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling
Dimensional Specifications
Flutes/Inserts 6
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 704
Overall Len 1.7500 44.45MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.1380
Tool Material Steel
Cutter Dia 4.3420 110.29MM
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Style HN,XN
Insert Shape/Cutter Pocket Shape Hexagon
