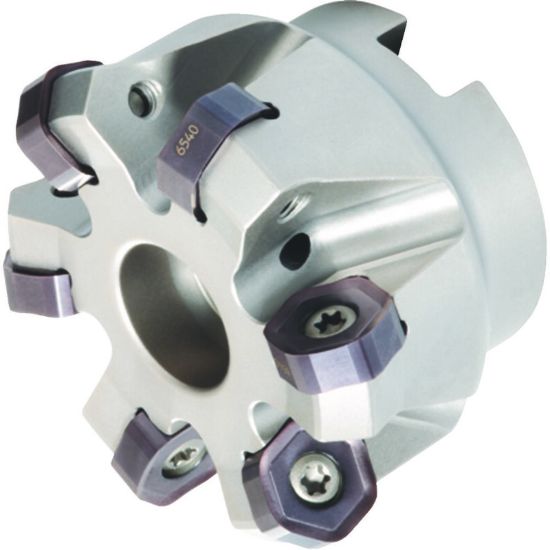

Picture of WIDIA/KENNAMETAL M1200D250Z08S075HN07 45.0° Milling Cutter 2.843 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M1200D250Z08S075HN07 45.0° Milling Cutter 2.843 Cutter Diameter Face Mill 0.750

ANSI: M1200D250Z08S075HN07

ISO: M1200D250Z08S075HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3954490
Delivery date: 3-5 days
$789.99

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Insert Size Ic 704
Depth Of Cut Max 0.1380
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5750 40.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.8430 72.21MM
Flutes/Inserts 8
Cutting & Machining Properties
Insert Style HN,XN
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Hand R/L Right
