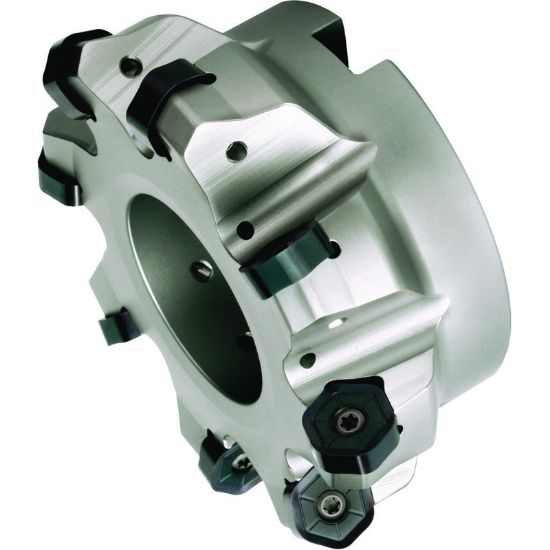

Picture of WIDIA/KENNAMETAL M1200D250Z06S075HN09 45.0° Milling Cutter 2.933 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M1200D250Z06S075HN09 45.0° Milling Cutter 2.933 Cutter Diameter Face Mill 0.750

ANSI: M1200D250Z06S075HN09

ISO: M1200D250Z06S075HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3323873
Delivery date: 3-5 days
$702.69

Features And Benefits

Twelve cutting edges. First choice for general face milling. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling
Package Size 1
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 1.5700 39.88MM
Insert Size Ic 905
Cut Dia Min 2.5000 63.50MM - 2-1/2
Cutter Dia 2.9330 74.50MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 6
Depth Of Cut Max 0.1770
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Hand R/L Right
Insert Style HN,XN
