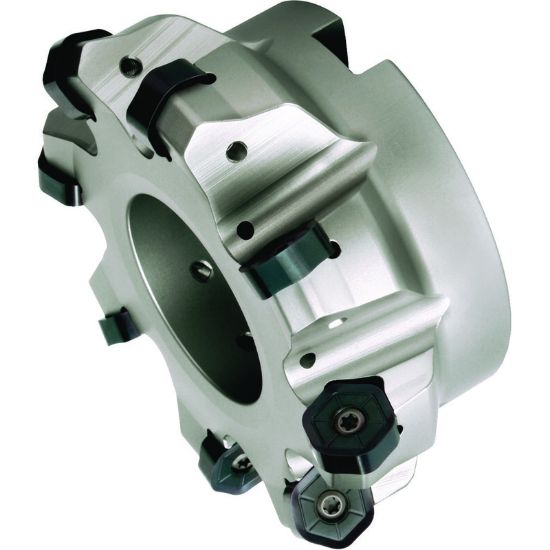

Picture of WIDIA/KENNAMETAL M1200D200Z05S075HN09 45.0° Milling Cutter 2.434 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M1200D200Z05S075HN09 45.0° Milling Cutter 2.434 Cutter Diameter Face Mill 0.750

ANSI: M1200D200Z05S075HN09

ISO: M1200D200Z05S075HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3323872
Delivery date: 3-5 days
$574.32

Features And Benefits

Twelve cutting edges. First choice for general face milling. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Insert Size Ic 905
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Depth Of Cut Max 0.1770
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.4340 61.82MM
Cut Dia Min 2.0000 50.80MM
Cutting & Machining Properties
Insert Style HN,XN
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Hand R/L Right
