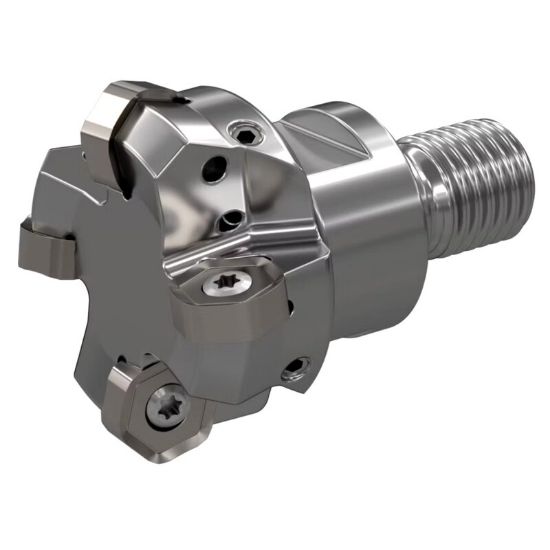

Picture of WIDIA/KENNAMETAL M1200D150Z04M16HN07 45.0° Milling Cutter 1.843 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M1200D150Z04M16HN07 45.0° Milling Cutter 1.843 Cutter Diameter Screw On M16

ANSI: M1200D150Z04M16HN07

ISO: M1200D150Z04M16HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3953905
Delivery date: 3-5 days
$391.85

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Application Face Milling
Package Size 1
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.1380
Tool Material Steel
Machine Side Connection Type Screw On
Cut Dia Min 1.5000 38.10MM - 1-1/2
Insert Size Ic 704
Machine Side Connection Size M16
Overall Len 2.4060 61.11MM
Cutter Dia 1.8430 46.81MM
Flutes/Inserts 4
Cutting & Machining Properties
Hand R/L Right
Insert Style HN,XN
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
