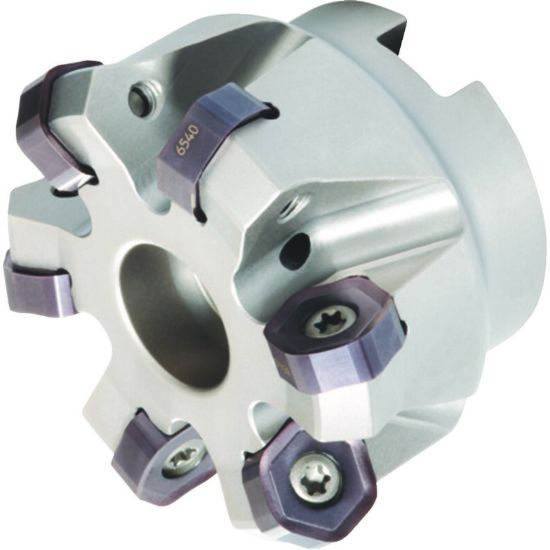

Picture of WIDIA/KENNAMETAL M1200D125Z08HN07 45.0° Milling Cutter 5.264 Cutter Diameter Face Mill 1.574

WIDIA/KENNAMETAL M1200D125Z08HN07 45.0° Milling Cutter 5.264 Cutter Diameter Face Mill 1.574

ANSI: M1200D125Z08HN07

ISO: M1200D125Z08HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4138470
Delivery date: 3-5 days
$920.77

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Application Face Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 704
Cutter Dia 5.2640 133.71MM
Machine Side Connection Size 1.5748 40.00MM
Overall Len 2.4800 62.99MM
Flutes/Inserts 8
Depth Of Cut Max 0.1380
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
