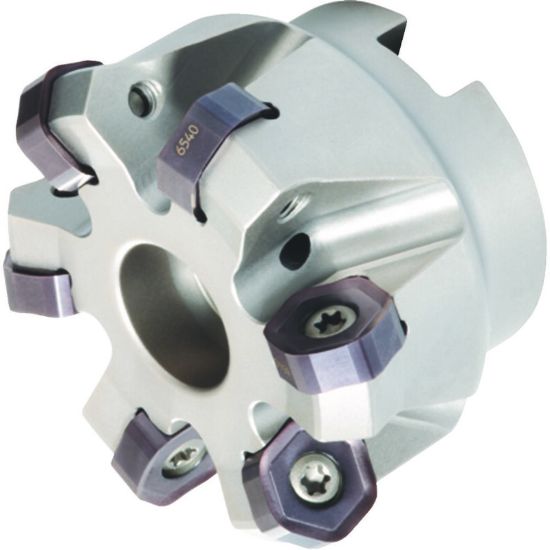

Picture of WIDIA/KENNAMETAL M1200D100Z12HN07 45.0° Milling Cutter 0.984 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL M1200D100Z12HN07 45.0° Milling Cutter 0.984 Cutter Diameter Face Mill 1.259

ANSI: M1200D100Z12HN07

ISO: M1200D100Z12HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958008
Delivery date: 3-5 days
$1,049.03

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert/Tool Tool
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert Type Negative
Shipping State Pennsylvania
Dimensional Specifications
Depth Of Cut Max 0.1380
Cut Dia Min 3.9370 100.00MM
Overall Len 1.9690 50.01MM
Flutes/Inserts 12
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Insert Size Ic 704
Tool Material Steel
Cutter Dia 0.9840 24.99MM
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
