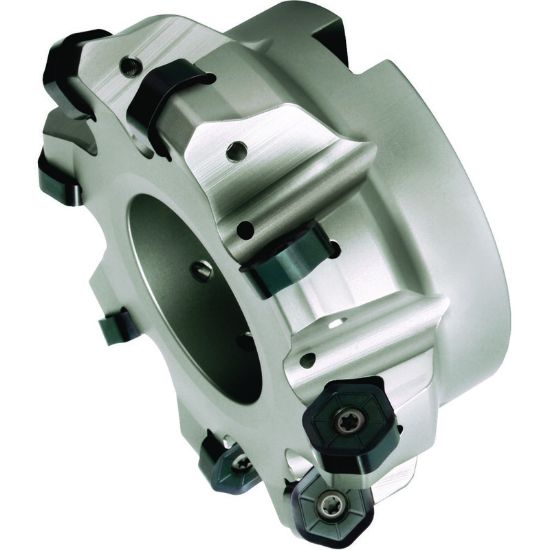

Picture of WIDIA/KENNAMETAL M1200D100Z11HN09 45.0° Milling Cutter 4.369 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL M1200D100Z11HN09 45.0° Milling Cutter 4.369 Cutter Diameter Face Mill 1.259

ANSI: M1200D100Z11HN09

ISO: M1200D100Z11HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3025378
Delivery date: 3-5 days
$1,209.40

Features And Benefits

Twelve cutting edges. First choice for general face milling. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cutter Dia 4.3694 110.98MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Min 3.9370 100.00MM
Insert Size Ic 905
Flutes/Inserts 11
Overall Len 1.9685 50.00MM
Depth Of Cut Max 0.1760
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style HN,XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
