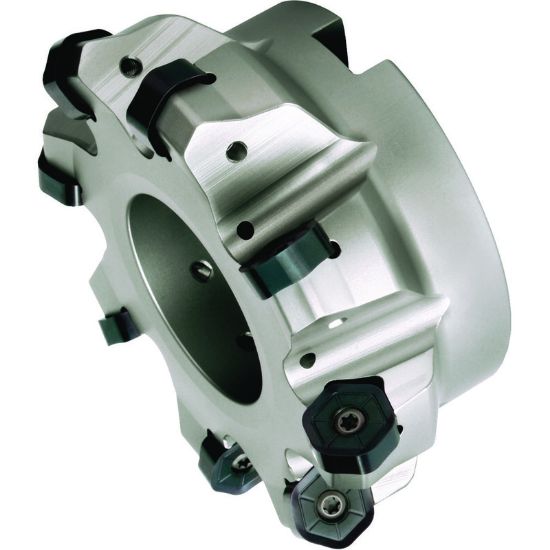

Picture of WIDIA/KENNAMETAL M1200D100Z06HN09 45.0° Milling Cutter 4.369 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL M1200D100Z06HN09 45.0° Milling Cutter 4.369 Cutter Diameter Face Mill 1.259

ANSI: M1200D100Z06HN09

ISO: M1200D100Z06HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3650537
Delivery date: 3-5 days
$823.00

Features And Benefits

Twelve cutting edges. First choice for general face milling. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling
Package Size 1
Dimensional Specifications
Insert Size Ic 905
Cutter Dia 4.3690 110.97MM
Flutes/Inserts 6
Depth Of Cut Max 0.1770
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Overall Len 1.9690 50.01MM
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
