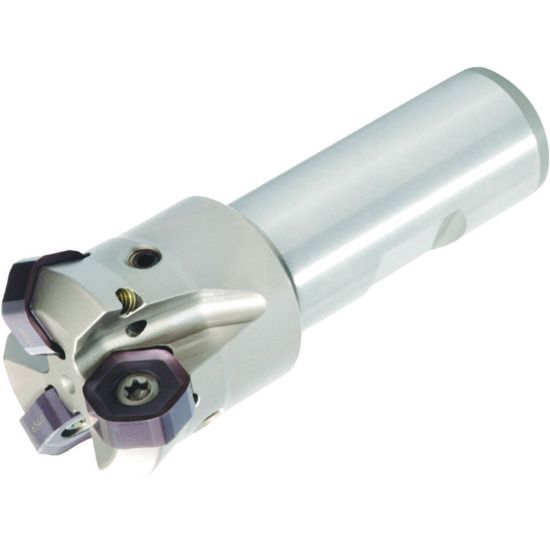

Picture of WIDIA/KENNAMETAL M1200D100Z03W075HN07 45.0° Milling Cutter 1.343 Cutter Diameter Cylindrical 0.750

WIDIA/KENNAMETAL M1200D100Z03W075HN07 45.0° Milling Cutter 1.343 Cutter Diameter Cylindrical 0.750

ANSI: M1200D100Z03W075HN07

ISO: M1200D100Z03W075HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3953894
Delivery date: 3-5 days
$379.60

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling
Dimensional Specifications
Insert Size Ic 704
Cutter Dia 1.3430 34.11MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 3
Neck Dia 1.0060
Depth Of Cut Max 0.1380
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 3.2800 83.31MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Hexagon
