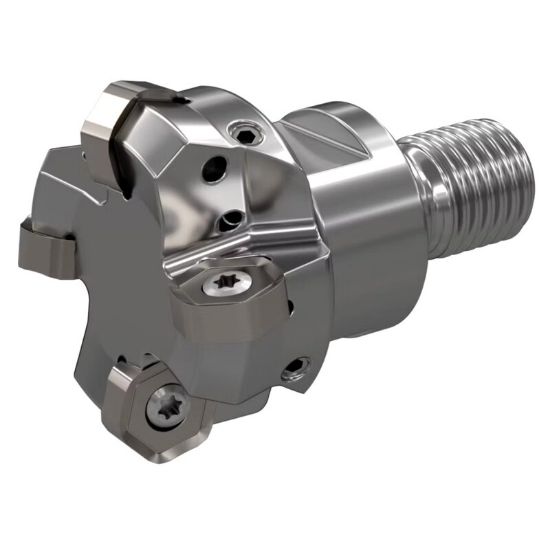

Picture of WIDIA/KENNAMETAL M1200D100Z03M16HN07 45.0° Milling Cutter 1.343 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M1200D100Z03M16HN07 45.0° Milling Cutter 1.343 Cutter Diameter Screw On M16

ANSI: M1200D100Z03M16HN07

ISO: M1200D100Z03M16HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3953682
Delivery date: 3-5 days
$397.59

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing, Finishing
Insert Type Negative
Made In USA No
Application Face Milling
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Depth Of Cut Max 0.1380
Flutes/Inserts 3
Cutter Dia 1.3430 34.11MM
Overall Len 2.1570 54.79MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 704
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Hand R/L Right
Insert Style HN,XN
