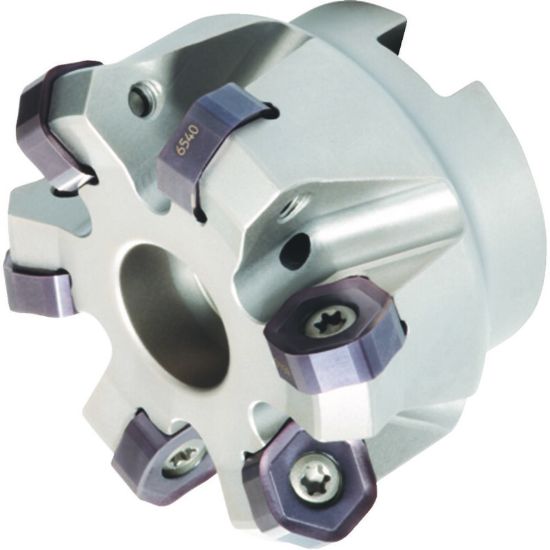

Picture of WIDIA/KENNAMETAL M1200D080Z10HN07 45.0° Milling Cutter 0.866 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M1200D080Z10HN07 45.0° Milling Cutter 0.866 Cutter Diameter Face Mill 1.063

ANSI: M1200D080Z10HN07

ISO: M1200D080Z10HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958005
Delivery date: 3-5 days
$936.17

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Insert Size Ic 704
Depth Of Cut Max 0.1380
Tool Material Steel
Overall Len 1.9690 50.01MM
Cutter Dia 0.8660 22.00MM
Cut Dia Min 3.1496 80.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Flutes/Inserts 10
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Insert Style HN,XN
Hand R/L Right
