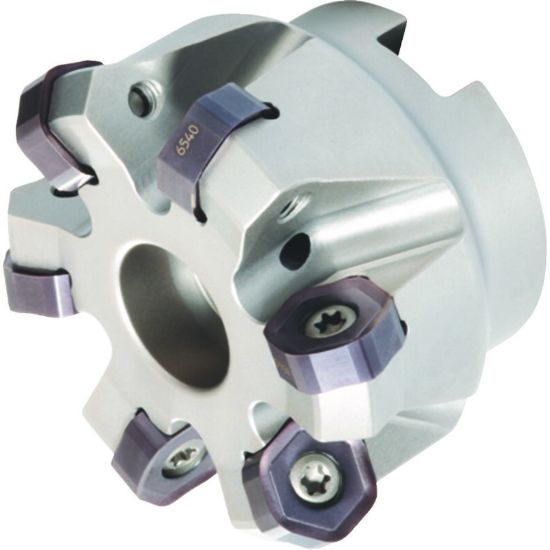

Picture of WIDIA/KENNAMETAL M1200D080Z08HN07 45.0° Milling Cutter 0.787 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M1200D080Z08HN07 45.0° Milling Cutter 0.787 Cutter Diameter Face Mill 1.063

ANSI: M1200D080Z08HN07

ISO: M1200D080Z08HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958004
Delivery date: 3-5 days
$831.03

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Made In USA No
Insert Type Negative
Shipping State Pennsylvania
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 704
Cutter Dia 0.7870 19.99MM
Cut Dia Min 3.1496 80.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Tool Material Steel
Depth Of Cut Max 0.1380
Overall Len 1.9690 50.01MM
Flutes/Inserts 8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Insert Style HN,XN
Hand R/L Right
