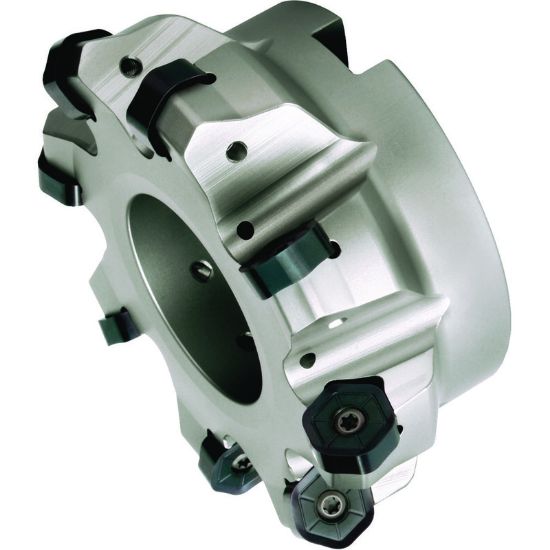

Picture of WIDIA/KENNAMETAL M1200D080Z06HN09 45.0° Milling Cutter 3.582 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M1200D080Z06HN09 45.0° Milling Cutter 3.582 Cutter Diameter Face Mill 1.063

ANSI: M1200D080Z06HN09

ISO: M1200D080Z06HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3081507
Delivery date: 3-5 days
$770.27

Features And Benefits

Twelve cutting edges. First choice for general face milling. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.1770
Cut Dia Min 3.1496 80.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Cutter Dia 3.5820 90.98MM
Overall Len 1.9685 50.00MM
Flutes/Inserts 6
Tool Material Steel
Insert Size Ic 905
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Insert Style HN,XN
Coolant Thru Yes
