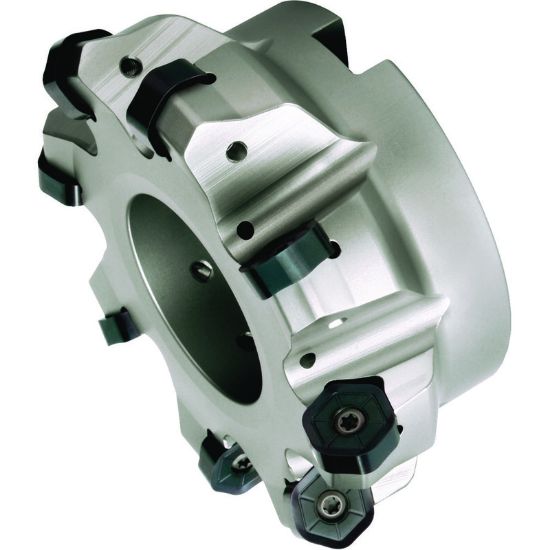

Picture of WIDIA/KENNAMETAL M1200D080Z05HN09 45.0° Milling Cutter 3.583 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M1200D080Z05HN09 45.0° Milling Cutter 3.583 Cutter Diameter Face Mill 1.063

ANSI: M1200D080Z05HN09

ISO: M1200D080Z05HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3650536
Delivery date: 3-5 days
$672.92

Features And Benefits

Twelve cutting edges. First choice for general face milling. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert/Tool Tool
Insert Type Negative
Shipping State Pennsylvania
Application Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Overall Len 1.9690 50.01MM
Flutes/Inserts 5
Depth Of Cut Max 0.1770
Cutter Dia 3.5830 91.01MM
Tool Material Steel
Cut Dia Min 3.1500 80.01MM
Insert Size Ic 905
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Insert Style HN,XN
Hand R/L Right
