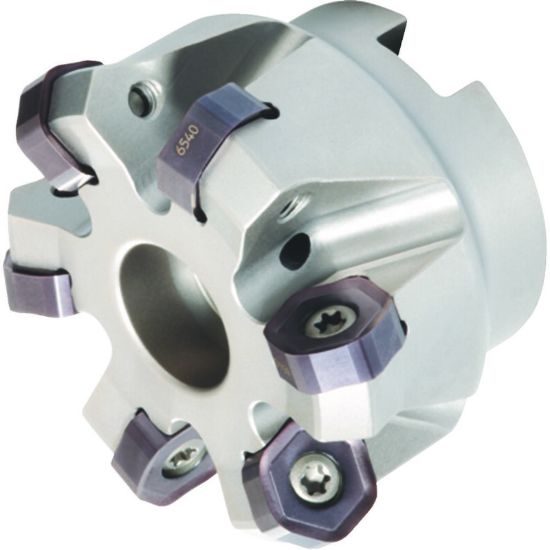

Picture of WIDIA/KENNAMETAL M1200D063Z08HN07 45.0° Milling Cutter 2.823 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M1200D063Z08HN07 45.0° Milling Cutter 2.823 Cutter Diameter Face Mill 0.866

ANSI: M1200D063Z08HN07

ISO: M1200D063Z08HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958002
Delivery date: 3-5 days
$802.81

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Insert Type Negative
Made In USA No
Package Size 1
Application Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 8
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Insert Size Ic 704
Cutter Dia 2.8231 71.71MM
Cut Dia Min 2.4803 63.00MM
Depth Of Cut Max 0.1380
Tool Material Steel
Overall Len 1.5750 40.01MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Style HN,XN
Insert Shape/Cutter Pocket Shape Hexagon
