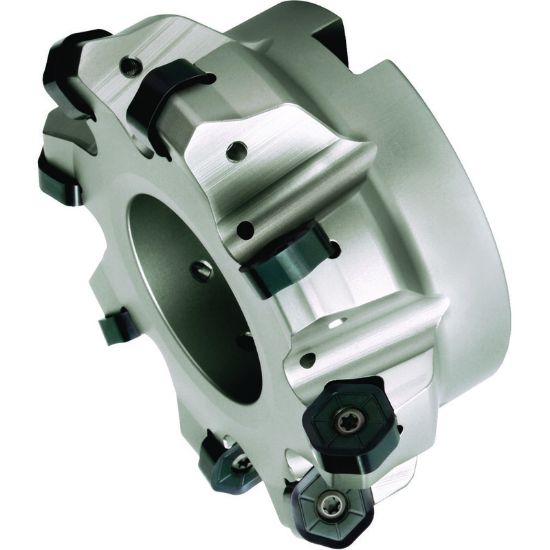

Picture of WIDIA/KENNAMETAL M1200D063Z06HN09 45.0° Milling Cutter 2.913 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M1200D063Z06HN09 45.0° Milling Cutter 2.913 Cutter Diameter Face Mill 0.866

ANSI: M1200D063Z06HN09

ISO: M1200D063Z06HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3093594
Delivery date: 3-5 days
$702.69

Features And Benefits

Twelve cutting edges. First choice for general face milling. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling
Dimensional Specifications
Cut Dia Min 2.4803 63.00MM
Insert Size Ic 905
Depth Of Cut Max 0.1770
Cutter Dia 2.9130 73.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 6
Tool Material Steel
Overall Len 1.5748 40.00MM
Cutting & Machining Properties
Insert Style HN,XN
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
