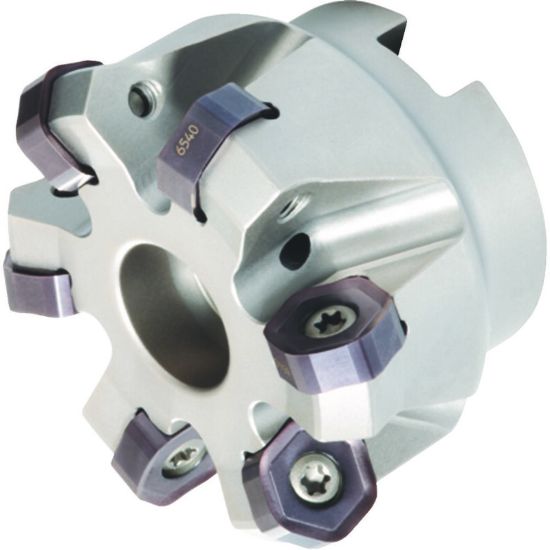

Picture of WIDIA/KENNAMETAL M1200D063Z06HN07 45.0° Milling Cutter 2.823 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M1200D063Z06HN07 45.0° Milling Cutter 2.823 Cutter Diameter Face Mill 0.866

ANSI: M1200D063Z06HN07

ISO: M1200D063Z06HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958001
Delivery date: 3-5 days
$697.64

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.1380
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 6
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Insert Size Ic 704
Cutter Dia 2.8231 71.71MM
Cut Dia Min 2.4803 63.00MM
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Hexagon
