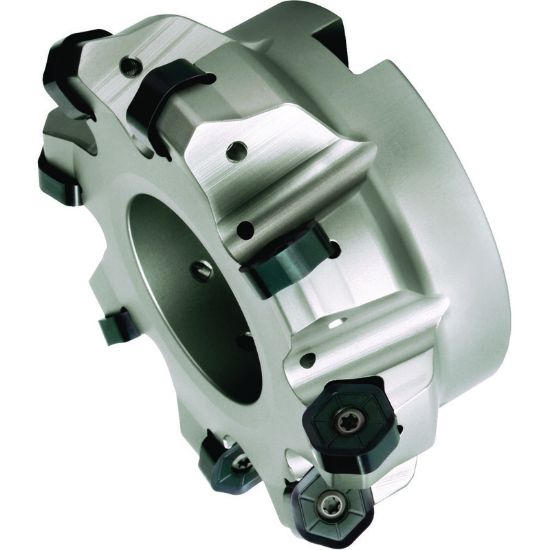

Picture of WIDIA/KENNAMETAL M1200D050Z05HN09 45.0° Milling Cutter 2.401 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M1200D050Z05HN09 45.0° Milling Cutter 2.401 Cutter Diameter Face Mill 0.866

ANSI: M1200D050Z05HN09

ISO: M1200D050Z05HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3325693
Delivery date: 3-5 days
$574.32

Features And Benefits

Twelve cutting edges. First choice for general face milling. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling
Insert Type Negative
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cutter Dia 2.4010 60.99MM
Depth Of Cut Max 0.1770
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Min 1.9685 50.00MM
Tool Material Steel
Overall Len 1.5748 40.00MM
Flutes/Inserts 5
Insert Size Ic 905
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Insert Style HN,XN
