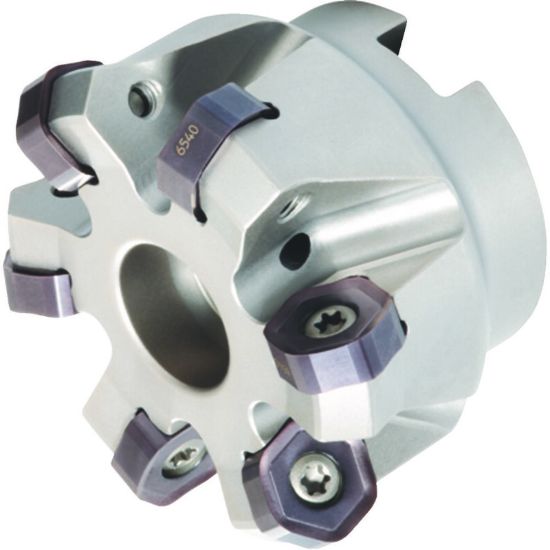

Picture of WIDIA/KENNAMETAL M1200D050Z05HN07 45.0° Milling Cutter 2.311 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M1200D050Z05HN07 45.0° Milling Cutter 2.311 Cutter Diameter Face Mill 0.866

ANSI: M1200D050Z05HN07

ISO: M1200D050Z05HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3957998
Delivery date: 3-5 days
$589.93

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Finishing, Roughing
Application Face Milling
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Insert Size Ic 704
Depth Of Cut Max 0.1380
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Min 1.9685 50.00MM
Cutter Dia 2.3114 58.71MM
Cutting & Machining Properties
Insert Style HN,XN
Insert Shape/Cutter Pocket Shape Hexagon
Hand R/L Right
Coolant Thru Yes
